3-way unit valve, PN 16

BUL

3-way unit valve, PN 16

How energy efficiency is improved

Linear mixture and no loss through leakage in the control passage for energy-efficient regulation


Features

  • Flat-sealing standard version or version with clamping-ring screw fitting for pipe Ø 15 mm with DN 10

  • Valve with male thread as per DIN EN ISO 228-1, class B

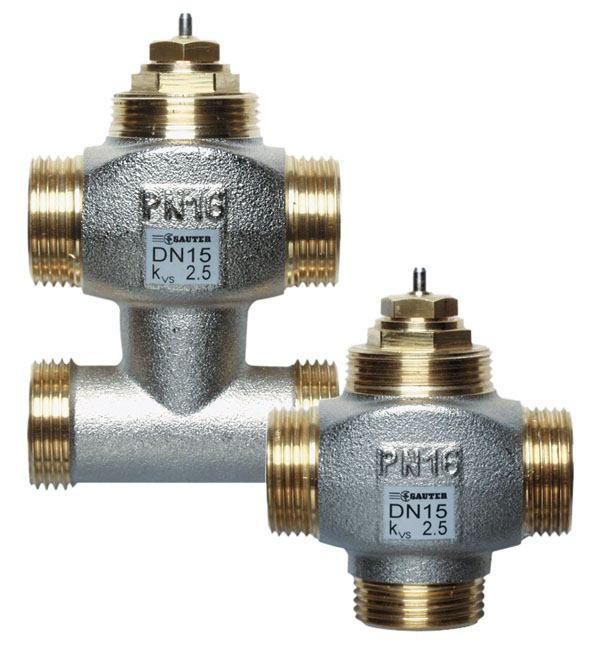

  • Special model for fan coil units with cast-on by-pass T-piece

  • Control passage A–AB is closed when the spindle is moved in

  • Can be used as a control valve and, thanks to its tight-sealing third passage, as a distribution valve

  • Nickel-plated valve body made of cast brass

  • Plug with EPDM soft seal for control passage and mixing passage

  • Stainless-steel spindle

  • Stuffing box with double O-ring seal

Product search
Types
BUL010F300
Small 3-way valve;DN10PN16;G1/2A;Kvs=1.6;=%
BUL010F310
Small 3-way valve;DN10PN16;G1/2A;Kvs=1.0;=%
BUL010F320
Small 3-way valve;DN10PN16;G1/2A;Kvs=0.63;=%
BUL010F330
Petite vanne 3voies;DN10PN16;G1/2A;Kvs=0.40;=%
BUL010F400
Small 3-way valve;DN10G1/2A;Kvs=1.6;=%;Bypass
BUL010F410
Small 3-way valve;DN10G1/2A;Kvs=1.0;=%;Bypass
BUL010F420
Small 3-way valve;DN10G1/2A;Kvs=0.63;=%;Bypass
BUL010F430
Small 3-way valve;DN10G1/2A;Kvs=0.40;=%;Bypass
BUL010F600
Small 3-way valve;DN10D=15;Kvs=1.6;=%;compr.fit
BUL010F610
Small 3-way valve;DN10D=15;Kvs=1.0;=%;compr.fit
BUL010F620
Small 3-way valve;DN10D=15;Kvs=0.63;=%;compr.fit
BUL010F630
Small 3-way valve;DN10D=15;Kvs=0.4;=%;compr.fit
BUL015F300
Small 3-way valve;DN15PN16;G3/4A;Kvs=4.0;=%
BUL015F310
Small 3-way valve;DN15PN16;G3/4A;Kvs=2.5;=%
BUL015F400
Small 3-way valve;DN15G3/4A;Kvs=4.0;=%;Bypass
BUL015F410
Small 3-way valve;DN15G3/4A;Kvs=2.5;=%;Bypass
BUL020F300
Small 3-way valve;DN20PN16;G3/4A;Kvs=5.1;=%
BUL020F400
Small 3-way valve;DN20G1A;Kvs=5.1;=%;Bypass
